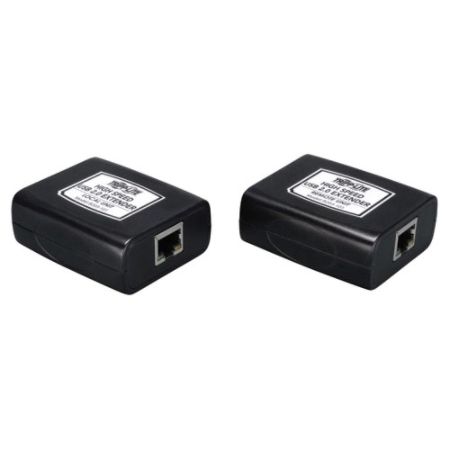

Tripp Lite B203-101 USB Extender Item # 493913
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
493913
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Tripp Lite's B203-101 USB 2.0 over Cat5/Cat6 Extender Kit transmits data from your Windows PC to a USB 2.0 peripheral up to 328 ft. away. Use the included 1 ft. USB cable to connect your PC to the transmitter. The USB signals travel between the transmitter and receiver units over user-supplied Cat5/Cat6 cable. It's a simple, cost-effective solution for connecting your Windows PC to a printer or other USB peripheral that lacks network connectivity and is farther than 16 feet away from your computer, which is the distance limitation for USB cables. For example, you can use the B203-101 to connect an impact printer to a server in another room. This extender kit is also convenient for making connections in areas without network availability. By using Cat5/Cat6 cable to carry signals, the B203-101 extends your installation farther than is possible with standard USB cables. Plus, Cat5/Cat6 cabling is readily available at low cost. For maximum signal integrity, use solid-conductor Cat5/Cat6 UTP cabling, such as Tripp Lite's N202-series. The B203-101 extender kit can achieve data transfer rates up to 480 Mbps. It's backward compatible with USB 1.1 peripherals, but at USB 1.1 speeds. The B203-101 works with Windows XP and later operating systems (not Mac compatible; for a Mac-compatible solution, choose Tripp Lite's B203-101-PNP extender kit). Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Product Details
| Item # | 493913 |
| OfficeMax # | 23559258 |
| Manufacturer # | LD8251 |
| Additional Information | Locate a Hi-Speed USB 2.0 device up to 100 Meters ( 330ft ) from a computer over Cat5e cable; Supports Hi-Speed data transfer rates up to 480Mbps; Backwards compatible with USB 1.1; Black Color |
| Certifications & Standards | TAA |
| package contents | B203-101 local transmitter; B203-101 1-port remote receiver; 1 ft. USB A/B cable (for local transmitter connection); External power supply for receiver (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A); Driver CD; Owner's Manual |
| Product Name | B203-101 USB Extender |
| manufacturer | Tripp Lite |
| brand name | Tripp Lite |
| warranty length | 1-year limited |
| model name | B203-101 |
Customer Reviews
Rated 4 out of 5�by 1
reviewer.
Rated 4 out of 5�by Anonymous Good
They work fairly well over the 100 feet we are currently using them - via an intermediary patch panel and wall faceplate. Use them for remote Keyboard/mouse. Able to use 4 of them on same computer without a problem. Install the software FIRST before connecting them. You have to have power at the remote location or it won't recognize the remote device. You will have to reboot after software installation. It may take a minute or two after connecting for it to recognize the remote device. See Q&A section - Installation does not auto-set the softare as a service to run before login - so if using to remotely control a PC with Keyboard/mouse - you may have to work on tweaking the installtion to suit your needs.
October 24, 2013
